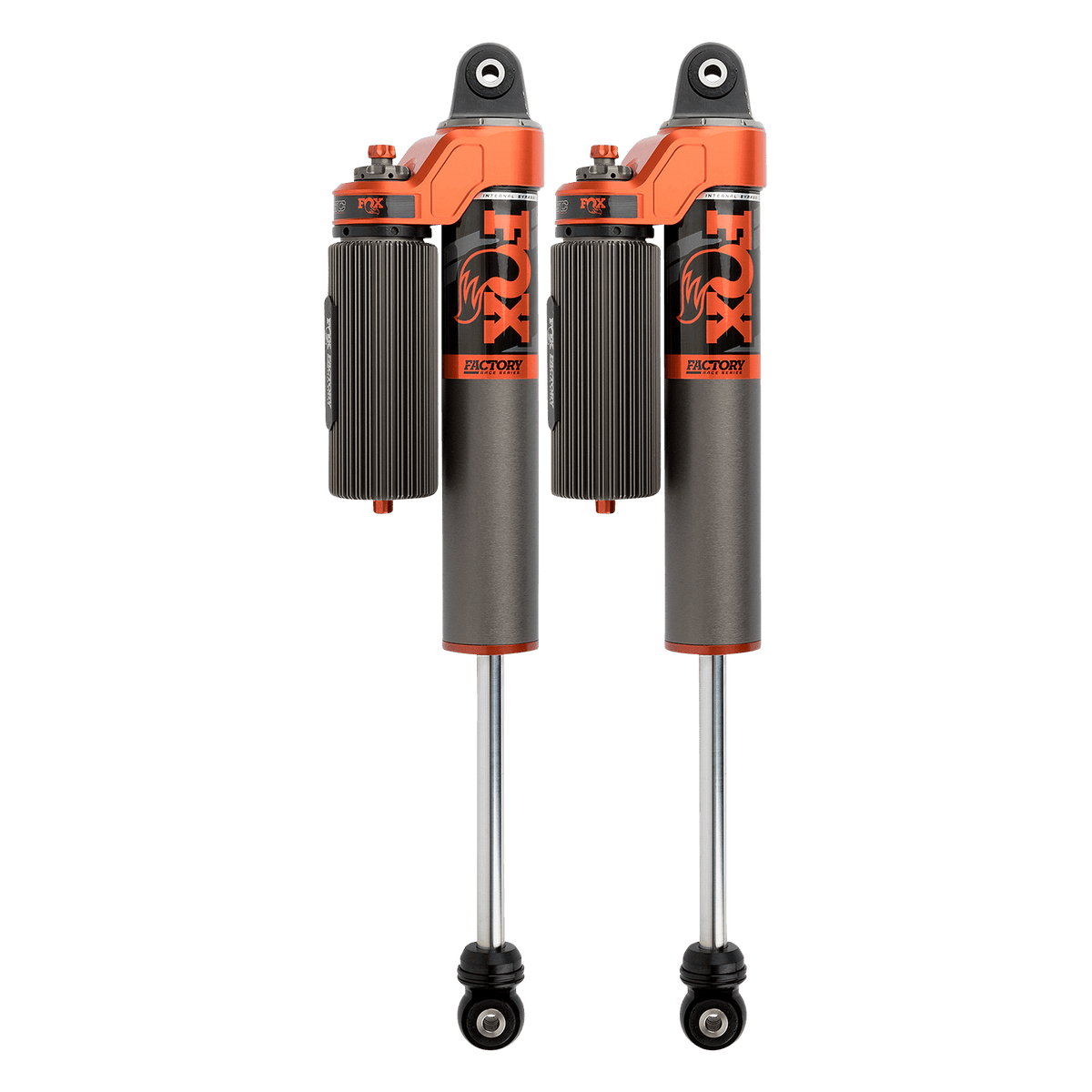

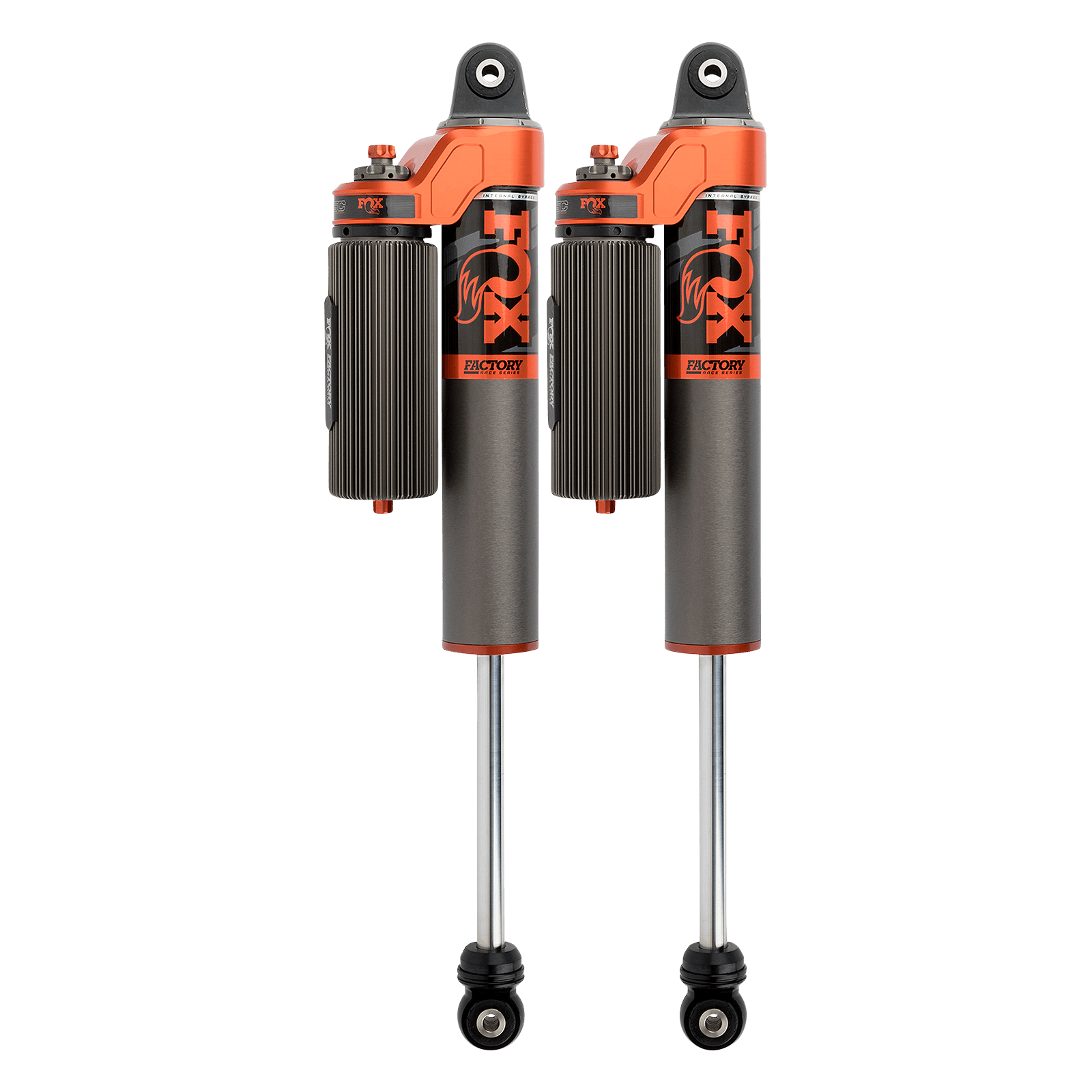

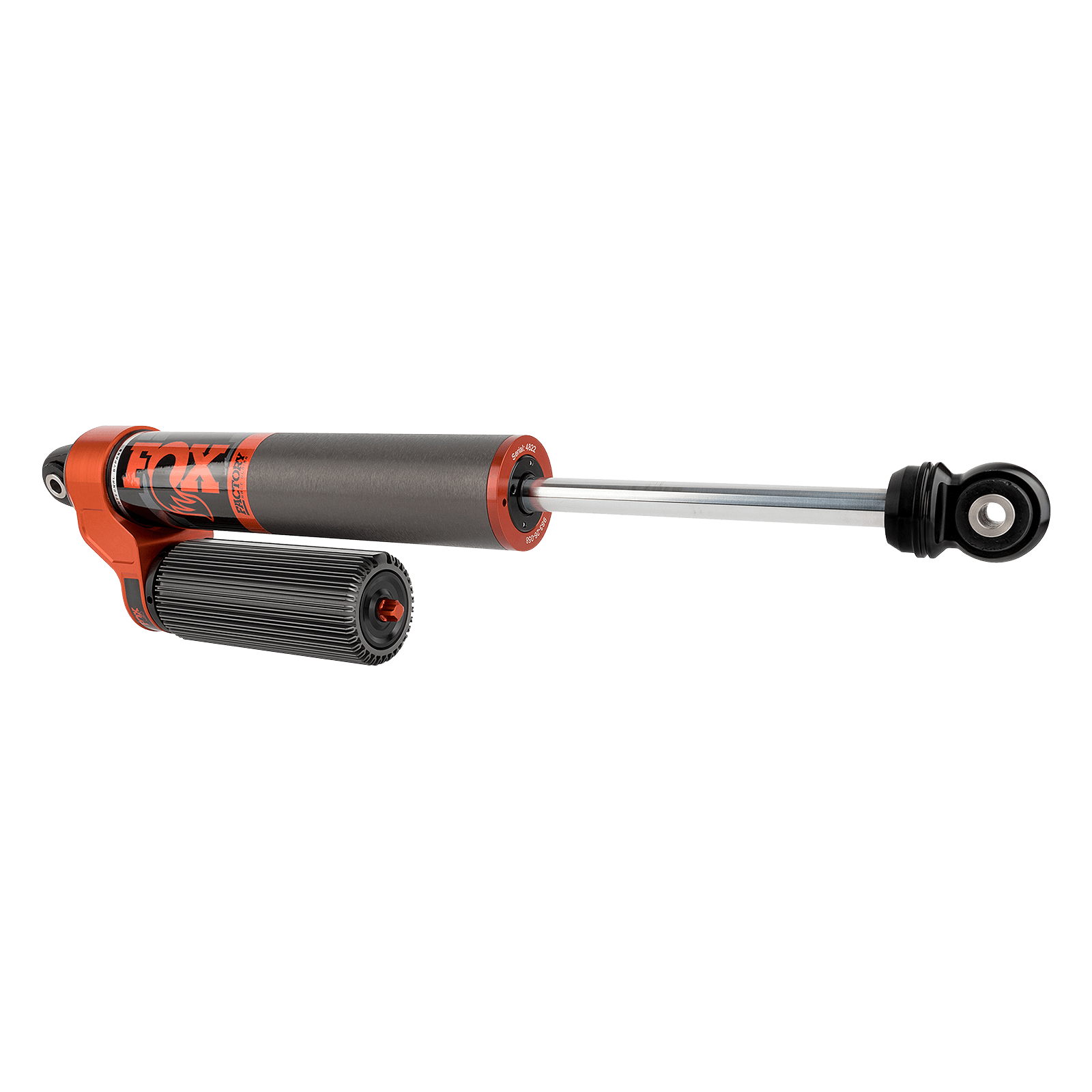

FOX 3.0 Remote Reservoir Front Shocks Adjustable | Factory Race Series Internal Bypass | 2-3 Lift | Gladiator JT

Brand: FOX
SKU: FOX88326083
Kit Component List

×
$2,995.95
Subtotal: $2,995.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_883_26_058_truck_factory_race_internal_bypass_shock_pr_1600x1600.png

FOX 3.0 Remote Reservoir Front Shocks Adjustable | Factory Race Series Internal Bypass | 2-3 Lift | Gladiator JT

$2,995.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_883_26_058_truck_factory_race_internal_bypass_shock_pr_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_883_26_058_truck_factory_race_internal_bypass_shock_um_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_883_26_058_truck_factory_race_internal_bypass_shock_cu_a_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_883_26_058_truck_factory_race_internal_bypass_shock_cu_b_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_883_26_058_truck_factory_race_internal_bypass_shock_cu_c_1600x1600.png

FOX 3.0 Remote Reservoir Front Shocks Adjustable | Factory Race Series Internal Bypass | 2-3 Lift | Gladiator JT

$2,995.95
OVERVIEW

Give your Jeep Gladiator JT the edge with the Factory Race Series 3.0 Internal Bypass shock, delivering race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.

These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your JT with 3.5-4.5 inches of lift.

Features & Benefits

  • Position-sensitive internal bypass technology allows for a plush, predictable ride over normal off-road driving conditions.
  • Counteract harsh bottom-outs or top-outs that could buck you off the trail.
  • Durable 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel.

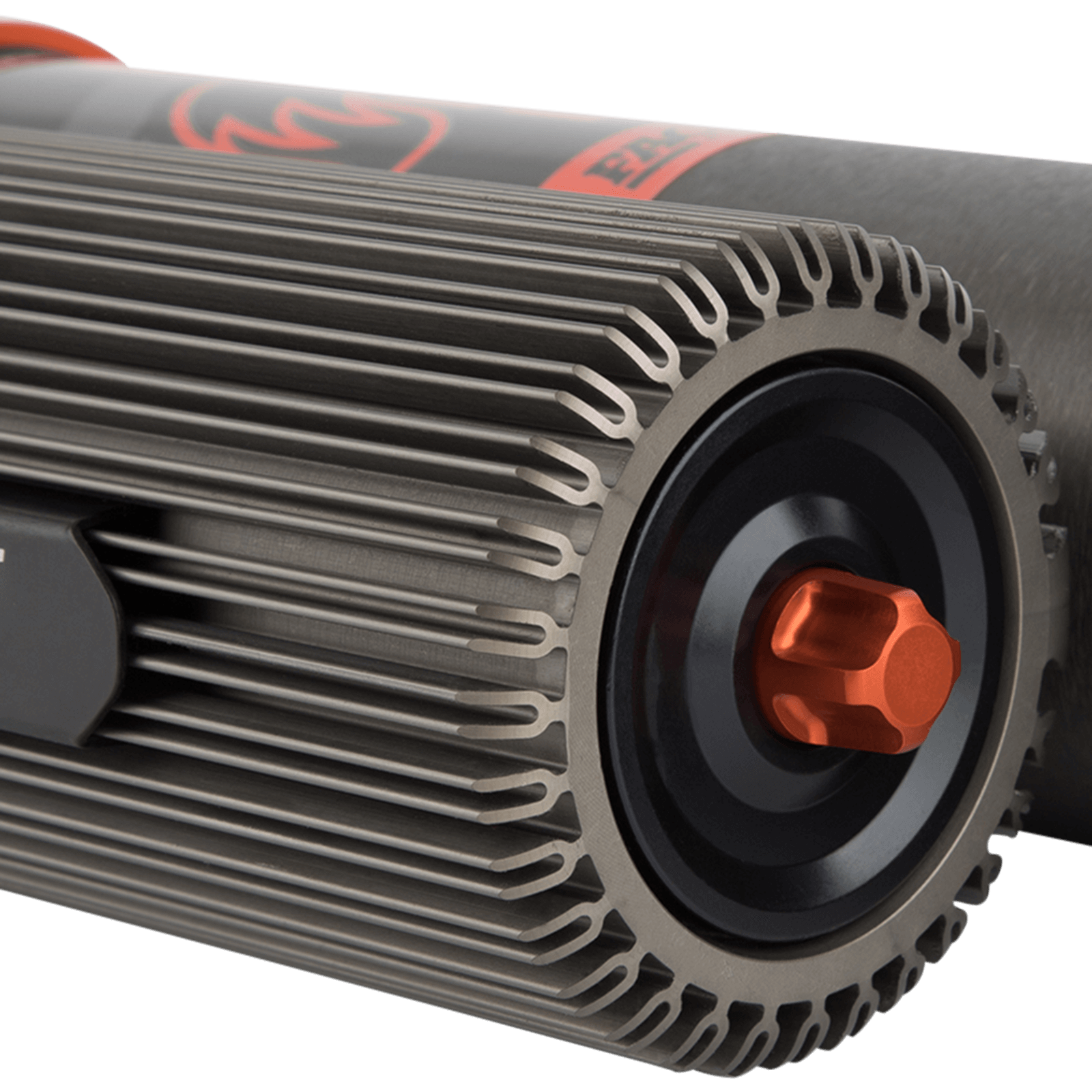

  • Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast for long lasting performance.

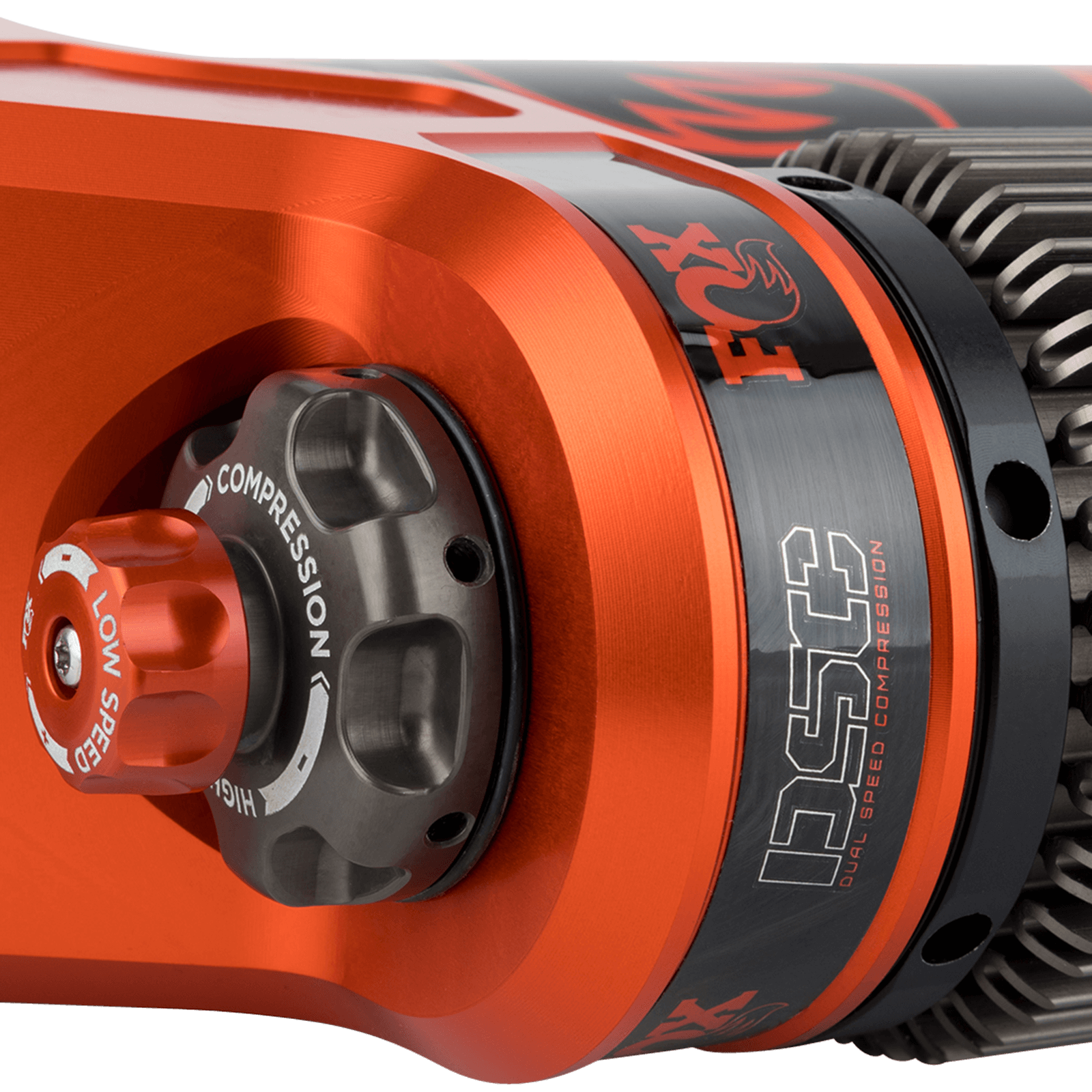

  • Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment to easily dial in your ride.
  • Massive 7/8" diameter hard chrome plated heat-treated alloy steel shock shaft to prevent bending or damage upon impacts.
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Rear Lift Height : 3.5-4.5"
  • Adjustable Damping : Yes
  • Compressed Length : 18.93
  • Cylinder Material : Aluminum
  • Extended Length : 28.34
  • Gas Charged : Yes
  • Lift Height : 3-4.5"
  • Lower Mount Code : EB2
  • Lower Mount Type : Eyelet
  • Reservoir Type : Piggyback
  • Shaft Diameter : 7/8"
  • Travel Length : 9.41
  • Type : Shocks
  • Upper Mount Code : BP2
  • Upper Mount Type : Eyelet
FITMENT
2023|Jeep|Gladiator|*|*|*|*|48166|Shock Absorber Kit|Each|1||||Rear|30|||||||||||;2024|Jeep|Gladiator|*|*|*|*|48166|Shock Absorber Kit|Each|1||||Rear|30|||||||||||;2020|Jeep|Gladiator|*|*|*|*|48166|Shock Absorber Kit|Each|1||||Rear|30|||||||||||;2025|Jeep|Gladiator|*|*|*|*|48166|Shock Absorber Kit|Each|1||||Rear|30|||||||||||;2022|Jeep|Gladiator|*|*|*|*|48166|Shock Absorber Kit|Each|1||||Rear|30|||||||||||;2021|Jeep|Gladiator|*|*|*|*|48166|Shock Absorber Kit|Each|1||||Rear|30|||||||||||
