FOX 2.0 Rear Shock w/ Reservoir | 1.5-3.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18)

Brand: BDS Suspension
SKU: FOX98524016
Kit Component List

×
$365.95
Subtotal: $365.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_985_24_016_truck_performance_shock_pr_1600x1600.png

FOX 2.0 Rear Shock w/ Reservoir | 1.5-3.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18)

$365.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_985_24_016_truck_performance_shock_pr_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_985_24_016_truck_performance_shock_um_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_985_24_016_truck_performance_shock_op_1600x1600.png
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_985_24_016_truck_performance_shock_cu_1600x1600.png

FOX 2.0 Rear Shock w/ Reservoir | 1.5-3.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18)

$365.95
OVERVIEW

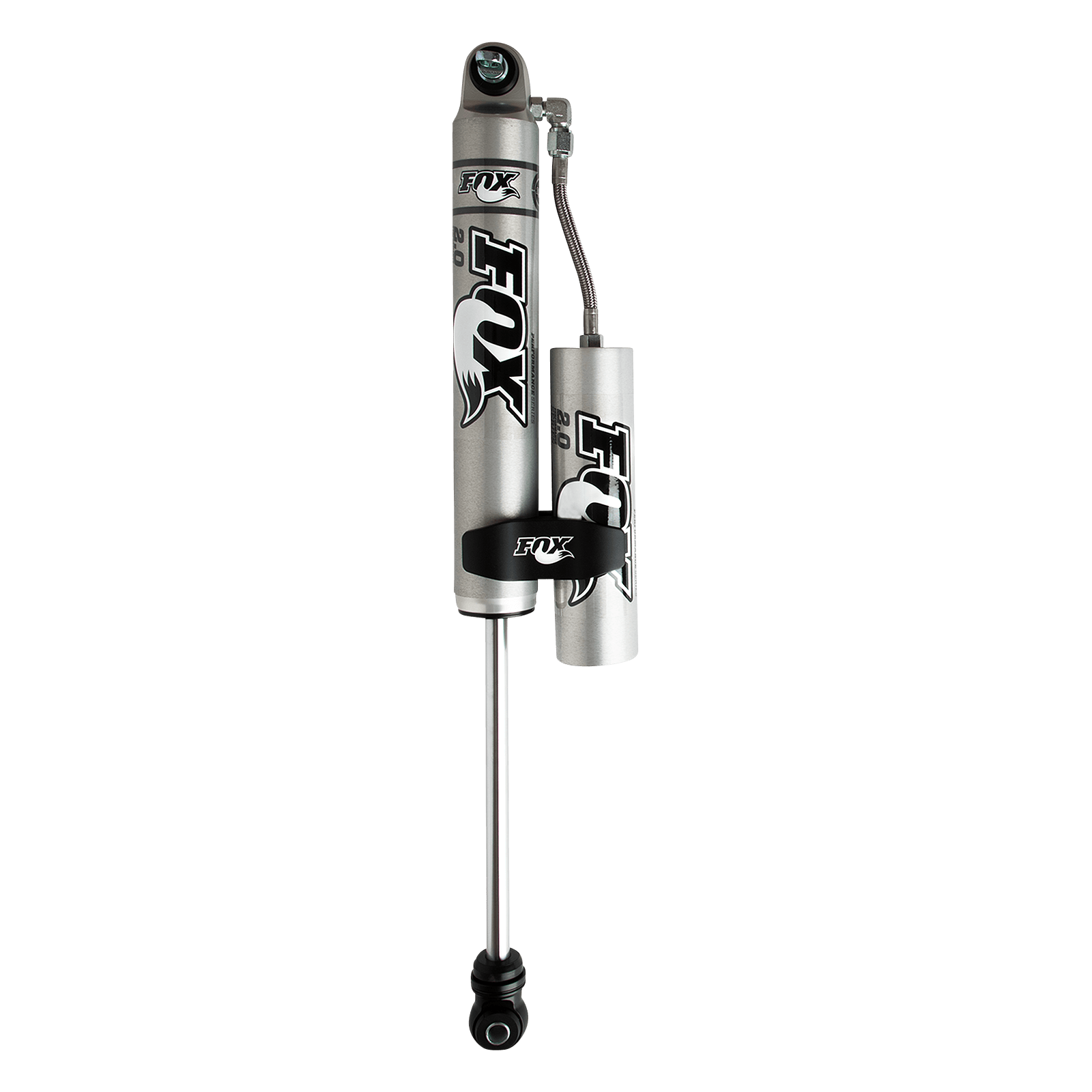

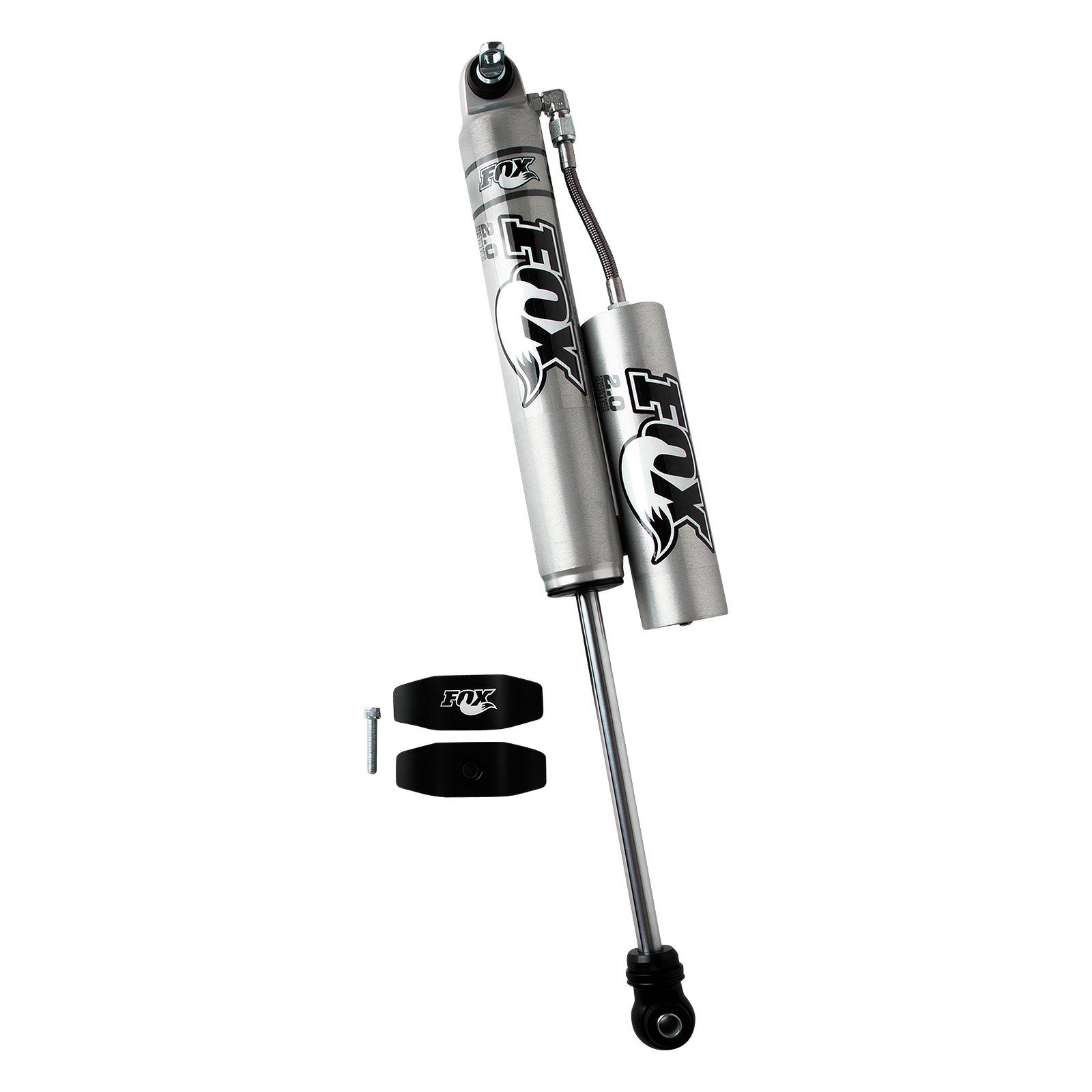

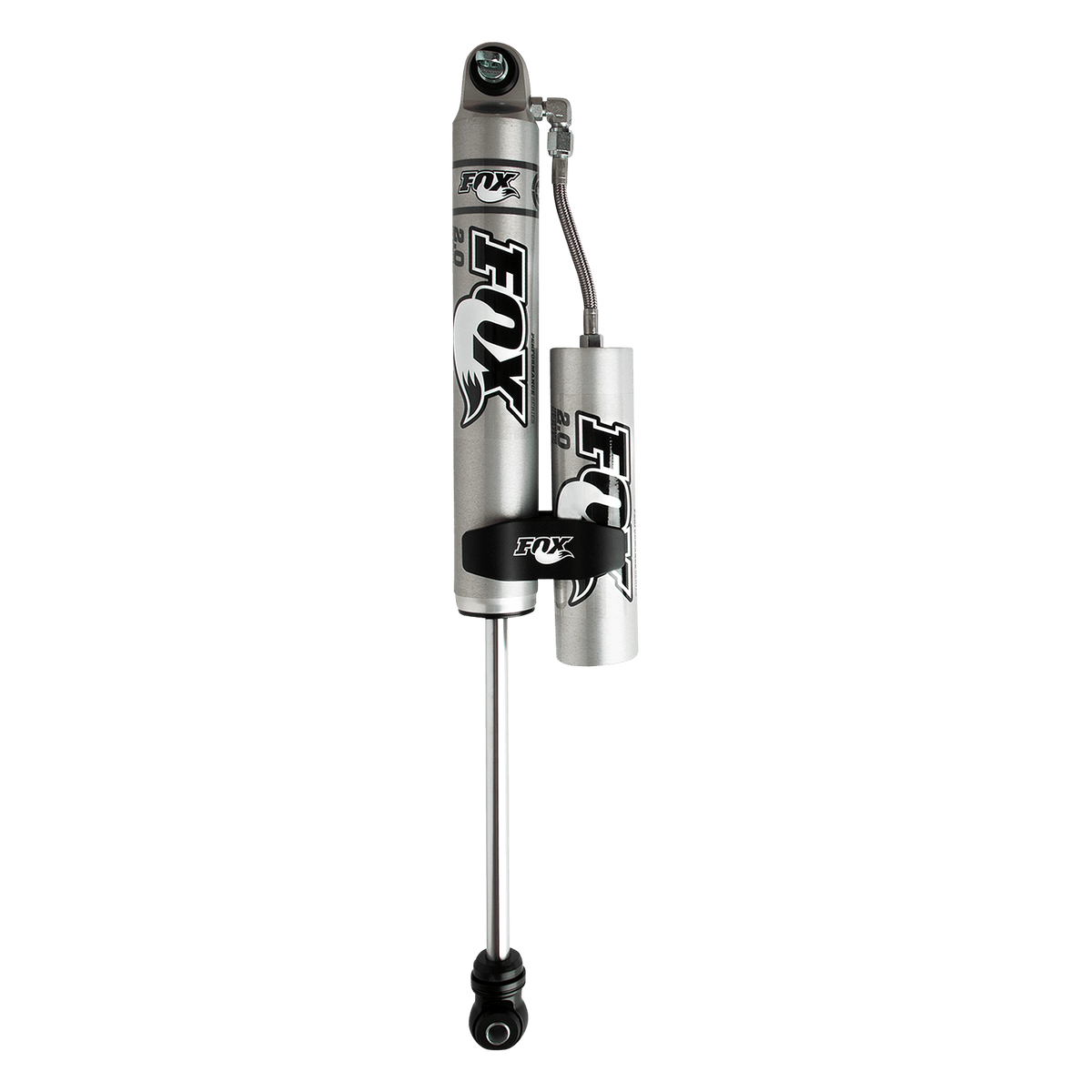

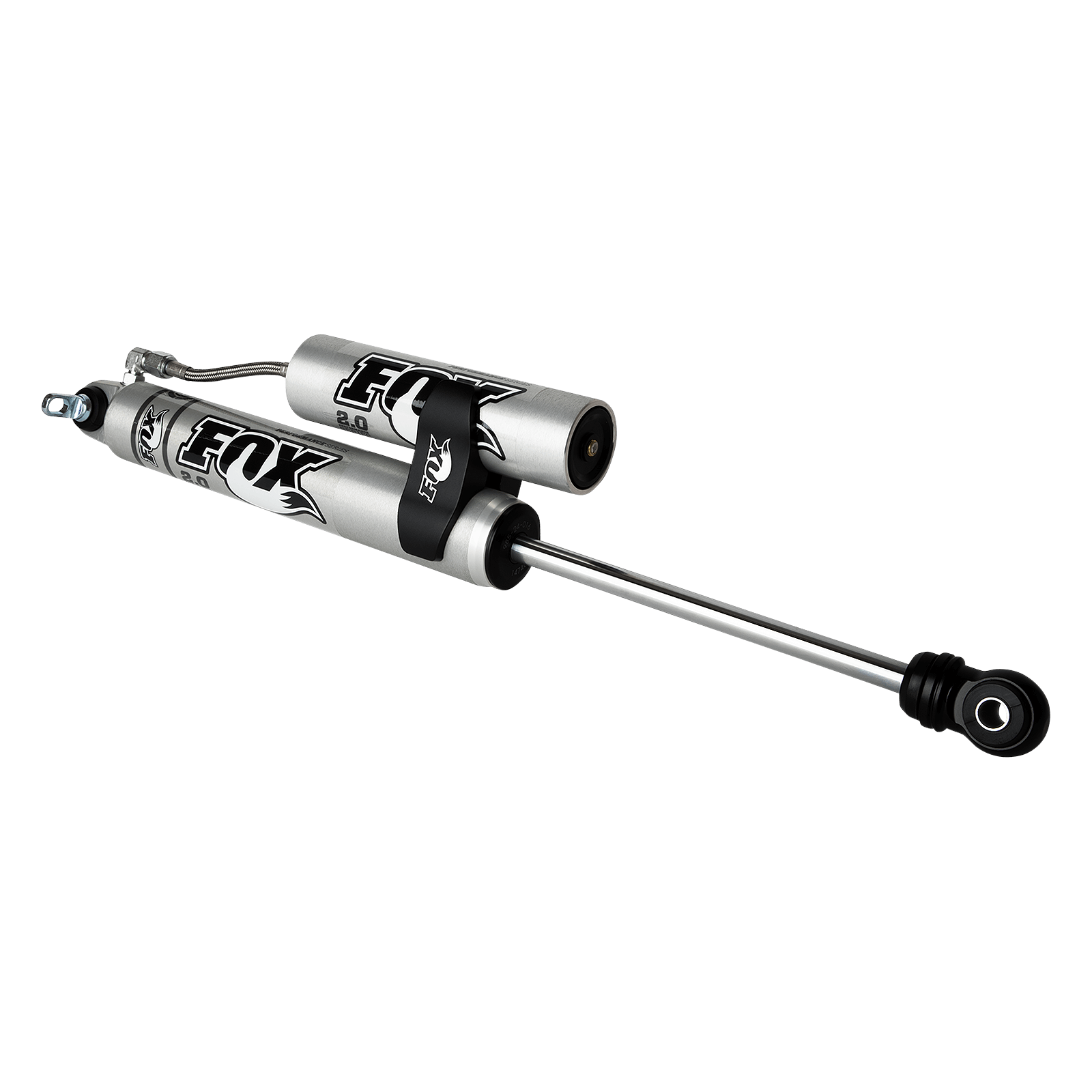

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit a 1.5 to 3.5-inch lift suspension kit. The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package.

The external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • External remote reservoir design w/ billet mounting clamp
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 14.9
  • Extended Length : 24.52
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 0-3.5"
  • Lower Mount Code : Eyelet
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5/8"
  • Travel Length : 9.62
  • Type : Smooth Body IFP

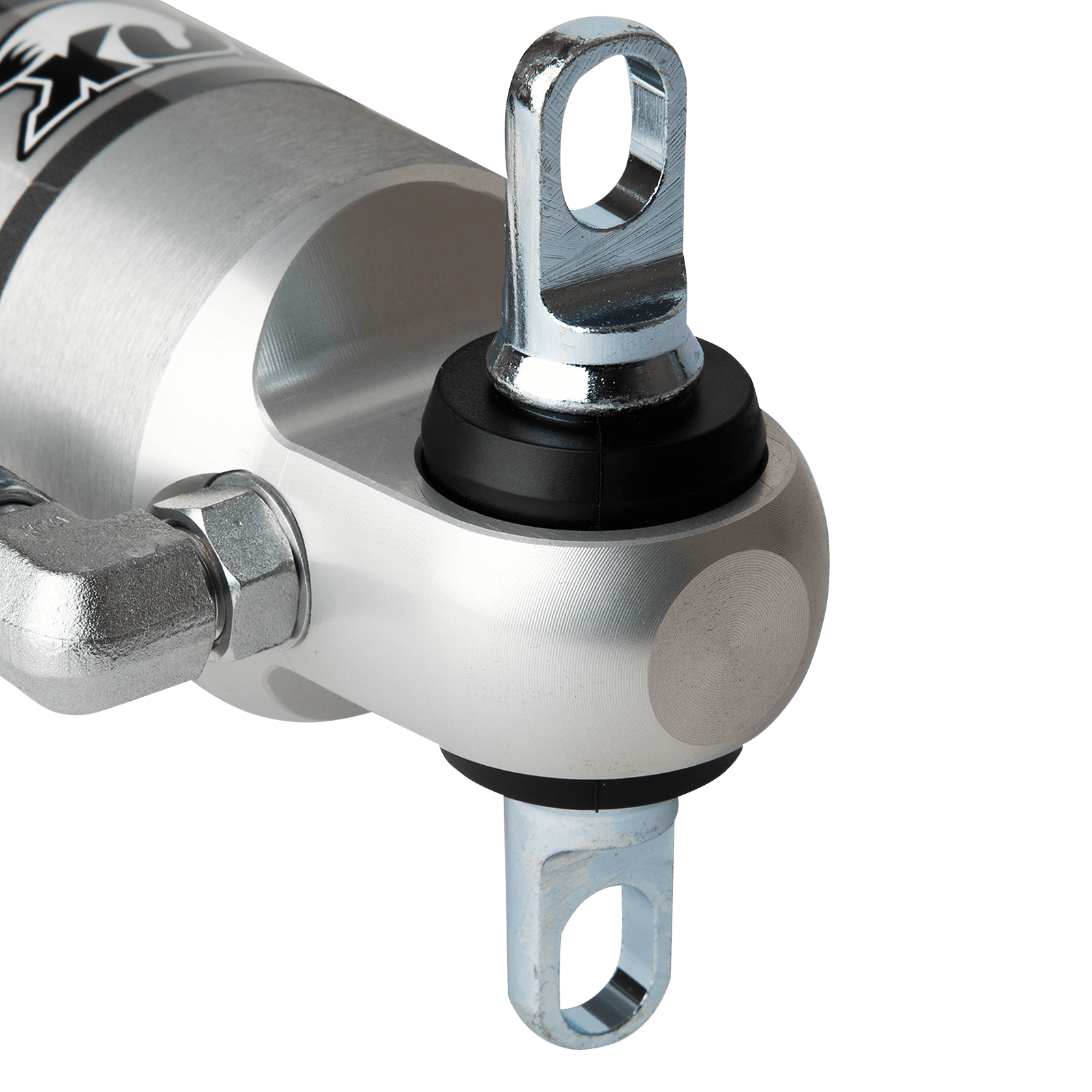

  • Upper Mount Code : BP4
  • Upper Mount Type : Bar Pin
FITMENT
2012|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2017|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2018|Jeep|Wrangler JK|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2009|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2016|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2007|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2013|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2011|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2008|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2010|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2014|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||;2015|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3.5"||||||||||
